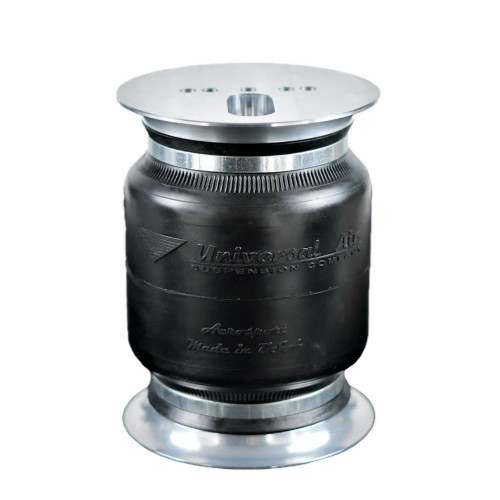

Air House Mini XXL U9000 Air Spring W/ Beadplates

SKU:
UASXXL9000
$189.00

Product Overview

The Air House Mini XXL was designed to be a Direct Replacement for the F9000 but out perform.  With up to 30% more Load Capacity then your standard F9000 in a smaller package.  Solid Aluminum Caps & Bead plates.  5.25" diameter for extra clearance.With a 4.25" Collapsed, and an Impressive 15" Extended height,  results in 11.75" of available bag travel.  With rolling both Top and Bottom Results in a higher angle capacity and cap misalignment compared to a standard 9000.  Aluminum Threads in the bead plates on top of the extended travel will keep your bottom inserts from being pulled out.Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.Maximum Outside Diameter when compressed is 5.25" and will shrink down to about 5.125" when inflated.

Specifications:

  • 4.25" Collapsed Height
  • 15" Extended Height
  • 5.25" Max Diameter
  • 1/4" NPT Port
  • 5.5" - 9.5" Optimum Ride Height
  • Up to 1900 Lbs. Force at 115 PSI
  • Heavy Duty Thick Rubber Construction
  • 537 PSI Tested Burst Pressure
  • Front or Rear Installation
  • Straight or Angled Installation
  • Industry Standard Bolt Pattern
  • Machined 6061 Aluminum Caps

Brand (Manufacturer) Info

Universal Air Suspension was established in the year 2000 built with the goal of manufacturing an air spring that will outperform all the others. The gamble has paid off as the company is now considered one of the industry’s primary manufacturers of air suspension accessories. One solid proof of this is that its Aero Sport is patented not just in the United States but also in Australia, Canada, and Japan.

Universal Air Suspension manufactures and distributes all its air suspension accessories in its 15,000 square feet facility in San Bernardino, California.

Warranty Information

Universal Air warrants this product to the end-user, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one year from the provided date of purchase for the original purchaser of the product. This warranty does not cover abuse, operation in a manner inconsistent with the product’s design, or damage resulting from exposure to the elements. In the event that a product is out of the warranty time period, we will evaluate and respond to the customer’s concerns on a case-by-case basis.
