Product Overview
Looking to get a great system ? Here is what you need!
Accuair e-Level+ is the highly anticipated next generation air suspension controller from Accuair built on the longest running foundation of technology in the industry. This new generation control system is Bluetooth 5.0 enabled and provides a simpler user experience, with even better performance and reliability, while answering the requests of customer from every corner of the globe. As always, you can count on the most accurate air suspension controller in the world from Accuair and you'll drive comfortably and consistently knowing that the core of every e-Level+ system has been proven on more than 40,000 vehicles over 10 years.
Accuair e-Level+ Connect with Height Sensors will open up the Auto Leveling features built in to the ECU. Mounting the height sensors at each corner of the suspension will send physical height data back to the ECU to control the vehicle height with the upmost accuracy.
Accuair e-Level+ Connect with Touchpad gives you a dedicated controller for your air suspension system. Accuair e-Level+ Touchpad has a fresh redesign with a smaller profile & magnetic abilities, compatible with all Schosche style cell phone mounts. Also upgraded to include a flying lead cable to help eliminate accidental cord damage.
Accuair e-Level+ Connect with Height Sensor & Touchpad is the ultimate setup. All the features wrapped up into one convenient package!!!
e-Level+ ECU:
Embedded bluetooth 5.0 (the power of our module is barely allowed by FCC so the range will be at least double any other systems on the market)
Customizable backlighting (RGB)
Anodized aluminum ECU enclosure
More robust hardware with full shutdown mode after 24 hours to prevent ANY battery draw.
Includes RS-485 communication connector to CVT (eliminates aa-c-adapter module).
TouchPad+:
Stainless Steel housing with new shape to match ECU. (Housing is magnetic to be compatible with Scosche style cell phone mounts)
New housing has thinned out to 0.360" thick compared to the old version at 0.500" thick.
Flying lead for USB cable (no USB Mini connectors to damage)
e-Level+ App:
Multiple height display options
Tank pressure display
CVT status (temperature, hours, etc)
Vertical and Horizontal formats
Diagnostic screens for easy troubleshooting
Supports over the air updates (OTA) for the e-Level+ firmware itself
Fits: Chevrolet & GMC C-10 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Features:
Every good air suspension kit should have a high quality air tank to store the air produced by the air pumps. Most air tanks on the market are going to require you to run valves externally, meaning you will have more to deal with during install and more plumbing that will be visible. Our patented ENDO-VT™ valve integrated air tank provides a cleaner install by having the valves integrated into the air tank. This allows for quicker installs and an overall nicer presentation in your trunk, truck bed, or anywhere else you choose to mount your tank. The ENDO-VT also represents AccuAir’s next generation of solenoid valve technology that includes VFC™ (variable flow control) in addition to D.O.T. approved fully filtered and rebuildable FFPTC (fully-filtered push-to-connect) fittings.
AccuAir’s ENDO-Tank product line is the result of years of engineering accomplishments and represents the largest leap forward in air tank technology for 100 years. The system allows tanks to be built modularly with all precision machined aluminum components and with a bolted construction. As a result, these tanks are weld-free and leak-free. Ports are machined directly into the solid aluminum body and are flush with the outside of the tank. Modular construction allows the end-caps to be removed allowing for never before imagined feature combinations to go inside the tank. These tanks are offered in raw aluminum.
The 444C compressors feature a head assembly that includes a newly-developed, patents pending intercooler head. Additionally, they are equipped with a stainless steel braided leader hose with inline check valve assembly that serves to protect the compressor by eliminating the possibility of high amperage restarts.
Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.
200 PSI / 3.53 CFM
We designed the wiring kit from the ground up to include everything that you need to wire your compressors correctly the very first time. Each kit includes a complement of the very same cable, wire, components, and parts that we use in the shop when doing a custom installation. No trips to the auto parts store. No trips to the hardware store. Everything you need is in the box. We’ve spared no expense, using only the highest quality parts and components available.
Each kit includes complete full color step-by-step instructions so that your installation will go smoothly and effortlessly. In addition, no specialized tooling is necessary to install the kit – only common hand tools found in any enthusiast’s toolbox.
Fine Strand OFC Tinned Wire
Soft Jacketed For Excellent Flexibility
Adhesive Lined Heat Shrinked Thick Tinned Eyelets
Weather Tight Connectors
Highest Quality Covering & Mounting Components
Detailed Step By Step Instructions
4 AWG OFC Main Power Wire (20ft)
80amp Continuous Duty Solenoid (1)
TechFlex Expandable Wire Covering (20ft)
Main Power Fuse Holder W/80amp Fuse (1)
Compressor Fuse Holder W/40amp Fuse (2)
Switched Power Fuse Holder W/3amp Fuse (1)
Trigger Wire For Accuair Pressure Switch (1)
All Necessary Wire Terminals, Connectors & Heat Shrink
All Necessary Routing Components & Mounting Hardware
- (2) 444C Chrome Compressors w/ 1/4" NPT Leader Hoses and Check Valves
- Intercooler Head (Patents Pending)
- (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve

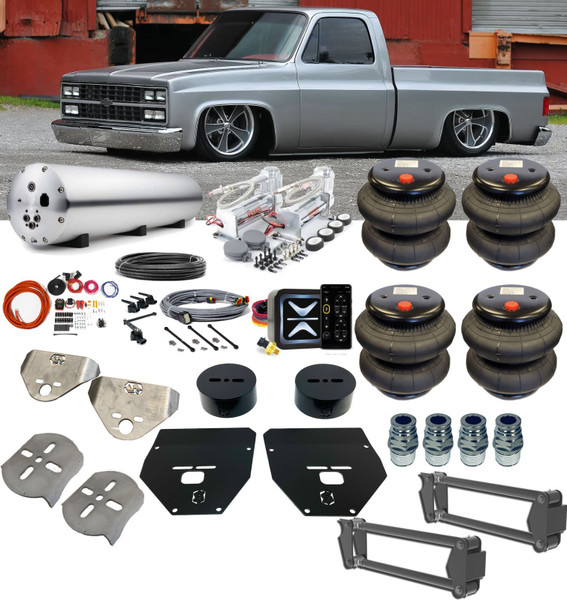

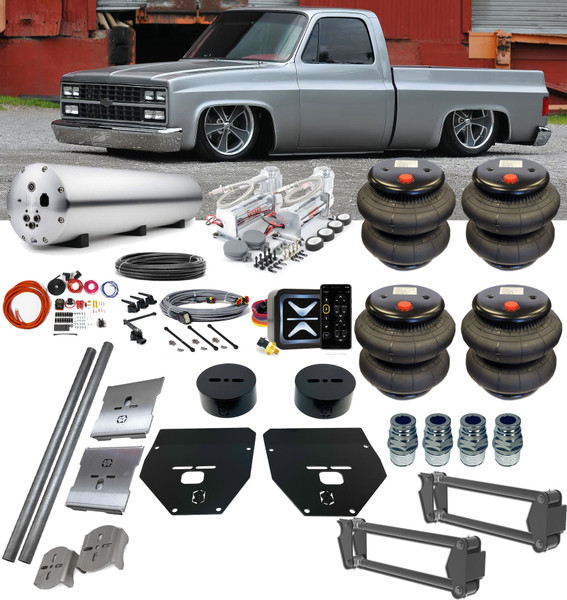

Includes:
Front Upper & Lower Bag Brackets
Rear Upper & Lower Bag Brackets
(4) 2600lb Air Bags
Parallel 4 Link with Panhard Bar
Accuair ENDO-VT (Valve-Tank) 5 gallon AA-3642
Accuair e-Level+ Complete Kit (part #'s AA-3639 / AA-3641 / AA-3640)
Dual Compressor Wire Kit
Viair 444C Dual Pack Compressors
50ft of 3/8" Air Line
2 x Brass 1/4" Female NPT to 1/4" Male NPT Street Elbow (FIT28262)
Brand (Manufacturer) Info
Since 2012, Switch Suspension has been giving the best of everything for anything that has wheels or has to do with wheels. Aside from superior quality brake, suspension, and steering upgrades, the company also has an installation facility and retail showroom in Mesa, Arizona.
Whatever your car or truck needs - upgrades, custom components, chassis, big brake kits, lowering kits, or suspension kits, Switch Suspension has it. Best of all, you can do your shopping online, right in the comforts of your home!
