Product Overview
Switch Suspension has put and affordable FULL air suspension kit together for your C10 trucks that includes nothing but the best components. The kit is 100% bolt on and requires only some light drilling.
Front upper bracket bolts on to crossmember, lower bracket sets right in the lower arm coil spring pocket.
Rear upper and lower bracket bolt in where the original coil spring mounted
Every good air suspension kit should have a high quality air tank to store the air produced by the air pumps. Most air tanks on the market are going to require you to run valves externally, meaning you will have more to deal with during install and more plumbing that will be visible. Our patented ENDO-VT™ valve integrated air tank provides a cleaner install by having the valves integrated into the air tank. This allows for quicker installs and an overall nicer presentation in your trunk, truck bed, or anywhere else you choose to mount your tank. The ENDO-VT also represents AccuAir’s next generation of solenoid valve technology that includes VFC™ (variable flow control) in addition to D.O.T. approved fully filtered and rebuildable FFPTC (fully-filtered push-to-connect) fittings.
AccuAir’s ENDO-Tank product line is the result of years of engineering accomplishments and represents the largest leap forward in air tank technology for 100 years. The system allows tanks to be built modularly with all precision machined aluminum components and with a bolted construction. As a result, these tanks are weld-free and leak-free. Ports are machined directly into the solid aluminum body and are flush with the outside of the tank. Modular construction allows the end-caps to be removed allowing for never before imagined feature combinations to go inside the tank. These tanks are offered in raw aluminum.
The bags in this kit are a great option for those of you on a budget but still looking for a quality air bag. This single ply 2600lb capacity air bag that is made from heavy-duty reinforced rubber, which is configured with double convoluted chambers built to withstand 200psi. That's more than you need for your hotrod, sport truck, or load leveling kit.
- 2.8" Collapsed and 10.5" Extended
- 7.25" Maximum Diameter
- 200psi Max Pressure
- 1/2 npt Female Port
All 444C compressors feature a head assembly that includes a newly-developed, patents pending intercooler head. Additionally, they are equipped with a stainless steel braided leader hose with inline check valve assembly that serves to protect the compressor by eliminating the possibility of high amperage restarts.
Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.
The Ultimate High Performance “VSV” gas shocks for your lowered or bagged sport truck. Whether you’re in the weeds or tearing up the asphalt, our “VSV” 10 stage velocity sensitive valving gives you quick response to all driving conditions for precise control. Toxic Shocks are specifically engineered for limited travel applications. Toxic Shocks include urethane bushings for long life and improved handling characteristics.
Numatics push to connect connector fitting have all metal construction,
are nickel plated brass body, stainless steel lock ring, and have pre applied thread sealant
Fits: Chevrolet C-10 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Notes: Fits trucks with trailing arms & rear coils only, will not fit leaf spring trucks.

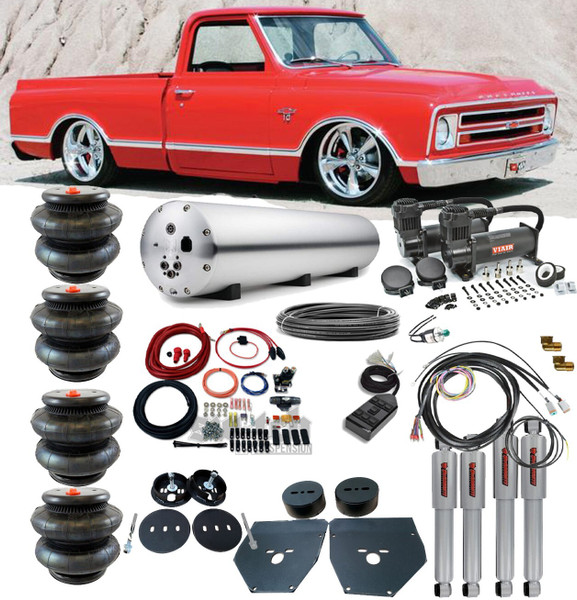

Includes:
Front C10 Bolt on Air Bag Brackets
Rear C10 Bolt on Air Bag Brackets
4x 2600lbs Air Bags w/Hardware
110-145 Viair PSI Switch VIA90217
Dual Black Viair 444c Air Compressors
50ft 3/8 Air Line
2x 1350 Front Shocks
2x 1850 Rear Shocks
444C Compressors w/ 1/4" NPT Leader Hoses and Check Valves
Intercooler Head (Patents Pending)
Air Filter Assemblies
Remote Mount Brackets
Sets of Remote Mount Fittings
Sets of Spare Air Filter Elements
Sets of Nuts, Bolts, Washers and Lock Washers
Stainless Steel Braided Leader Hoses with Inline Check Valve
Airline Clips
Viair Sealed Pressure Switch
Viair 80amp Relay (viair part# 93980)
Accuair ENDO-VT45 (Valve-Tank) Bolted Aluminum Air Tank AA-3642
AVS 7 Switch Controller
12ft Accuair Endo-VT Tank To AVS 7-switch Box Wiring Harness
Dual Compressor Wire Kit
Viair 444C Dual Pack Compressors
Viair 165on 200off Pressure Switch
50ft of 3/8" Air Line Air Line Size
2 x Brass 1/4" Female NPT to 1/4" Male NPT Street Elbow
