Product Overview

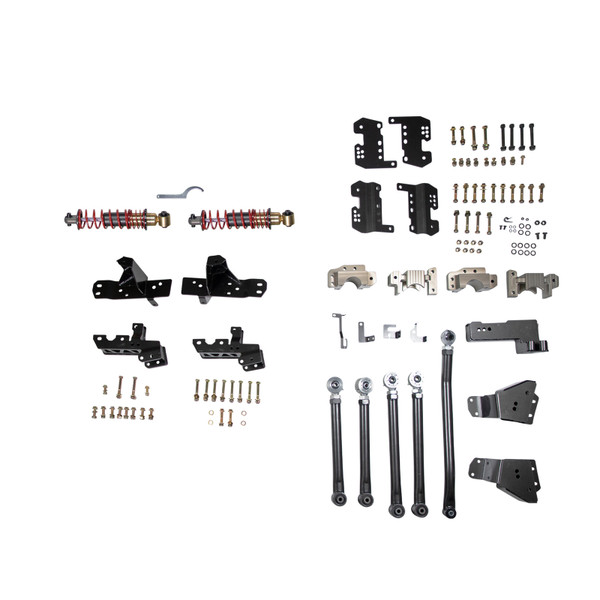

Transform your classic into a modern performance machine with Belltech’s rear suspension upgrade kit for the 1988–1998 GMC C1500. This complete system includes a precision-engineered 4-link conversion with adjustable track bar, coilovers, and optional super C-notch for increased suspension travel, and a heavy-duty adjustable rear sway bar. Every component is engineered to work together, delivering improved traction, flatter cornering, a refined ride, and confident control—while maintaining the classic stance and style that makes your OBS an icon.
Fits: GMC C1500 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Features:
- 4-Link System
- Heavy-duty 2” x 1/4” wall tubing built to plant power to the pavement
- Adjustable axle brackets: 4”–6” ride height
- Tunable anti-squat (75%–120%) and pinion angle for tailored traction + launch
- Rebuildable, greaseable rod ends for long-term serviceability
- Adjustable Track Bar
- Maintains proper axle centering + roll stability
- Constructed from 2” x 1/4” A36 steel with low-friction, triple-wall vulcanized bushings
- Ride-height positions: 4”, 5”, 6”
- Height-Adjustable Coilovers
- 60mm (2.36”) galvanized steel housing for optimized corrosion protection
- Powder-coated high-tensile 35 N/mm spring rate sport-tuned springs
- Progressive-rate polymer foam bump stops provide smooth limit control
- Spherical lower mounts for smooth articulation
- Optional:
- 3/4” Solid Rear Sway Bar
- Three adjustment positions for customizable handling
- Finished with durable powder coat
- includes Class 10.9 hardware
- Super C-Notch Assembly
- Expands suspension travel for a controlled, comfortable ride at lower heights
- Boxed design reinforces frame strength and rigidity
- 3/8” thick hard-anodized aluminum arch support
- Integrated foam overload bump stops
Includes:
- Link Bars & Mounting Brackets (4)
- Adjustable Track Bar (1)
- Rear Coil Overs (2)
- Optional: Rear Sway Bar, C-Notch Assembly
Belltech Part# 350R00 / 350R01 / 350R02 / 350R03
4-Link Installation Instructions
Rear Anti-Sway Bar Installation Instructions
