Product Overview
Viair Dual 480C OBA Part# 20021
For up to 40" Tires
VIAIR’s Dual 480C Onboard Air System has an increased head port size of 3/8” NPT, allowing it to provide the highest CFM on 100% duty cycle compressors rated at 100PSI. This Onboard Air System is a pre-packaged compressed air solution that offers two Chrome or Stealth Black 480C 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Questions Call 800-928-1984 We Are Happy To Help

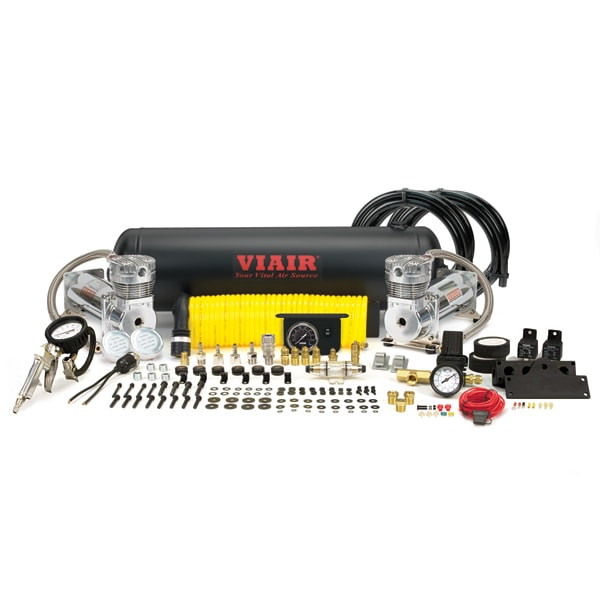

Kit Includes:
– 2.5 Gallon 200 PSI VIAIR Air Tank
– (2) 480C Chrome or Stealth Black VIAIR Compressors
w/Thermal Overload Protectors
– Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
– Tire Inflation Gun with 200 PSI Gauge
– 0-220 PSI Pressure Regulator
– Sealed Pressure Switch (165 PSI on, 200 PSI off)
– 1/4” Drain Cock
– (2) 40-amp Relays
– 60 Amp Inline Fuse Holder
– 1/4” Quick Connect Coupler (M)
– 1/4” 250 PSI Safety Valve
– (4) 1/4” Compression Fittings
– 6-Port Billet Manifold with Mounting Bracket (1/4”)
– (2) 20ft. 1/4” Air Line Included
– 5 Pc. 1/4” NPT Plugs Kit
– 30 Ft. Extension Coil Hose
Specifications
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 200 PSI
– Max. Amp Draw: 40 Amps
– Ingress Protection Rating: IP67
