Product Overview

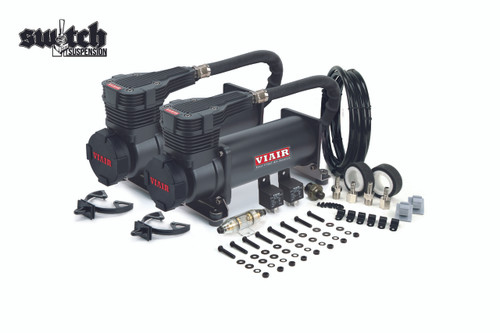

VIAIR’s new 485C compressor delivers performance that is unmatched, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.
The Single 12V 485C compressor with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
FEATURES
– 485C (Platinum or Stealth Black) Compressor w/ 3/8" NPT Leader Hose and Check Valve
– Air Filter Assembly
– VIAIR Removable Filter Cover
– (2) Replacement Air Filter Elements
– Remote Mount Bracket
– Set of Remote Mount Fitting
– Set of Spare Air Filter Elements
– (2) Leader Hose Clips
– Air Line Clip with Included Hardware
– Mounting Hardware
– Stainless Steel Braided Leader Hose with Inline Check Valve
– Air Line (For Remote Mount Filter Installation)
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 200 PSI
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 10.0 Gallon
– Combined Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.63″L x 4.1″W x 6.44″H
– Net Weight: 11.10 lbs.
