Product Overview

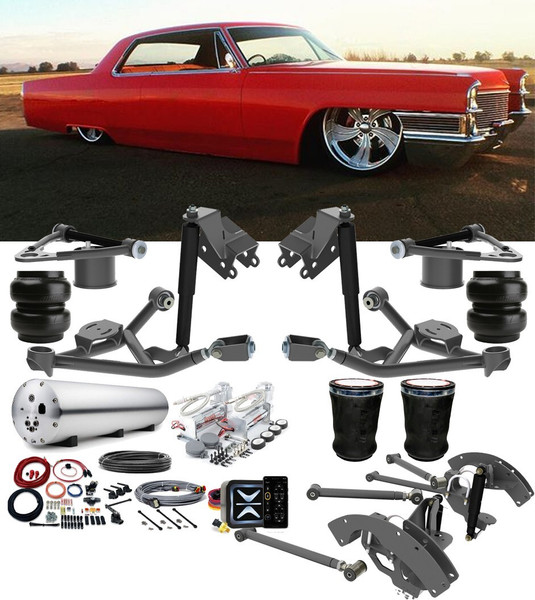

The Choppin' Block Cadillac front kit has addressed all the issues you would have when using air suspension with the OEM suspension. OEM lower control arms are known to bind through travel with air suspension, since your Cadillac was not designed for air suspension so the factory lower bushings and strut rod bushings tend to wear and crack over time. This will in turn will effect the front end alignment and other issues down the road.
Fits: Cadillac 1965, 1966, 1967, 1968, 1969
Features:
Fits: Cadillac 1965, 1966, 1967, 1968, 1969
Features:
The Choppin' Block Control Arms eliminate the factory strut bushing and converts to a heim joint so binding is not an issue through the full travel. It also allows fro the installation of a shock which will not effect turing radius and mantain facotry steering geometry.
The installation is 100% bolt on aside from a little cutting and grinding on the existing spring pocket for air bag clearance. Anyone with basic mechanical skills can install this kit on their own. Don't be scared; you got this!
Switch Suspension is always available for installation questions. Just in case!
Front kit includes:
Upper and Lower control arms
Bolt on upper shock mount
Control arm bolt-on bracket to replace control arm strut mount
Upper bag cup mount
Constructed of Heavy wall DOM tubing, TIG welded joints, cnc machined ball joint cups, and laser cut brackets, cnc formed.
Designed to get your classic car on the asphalt using large wheels
Rear kit includes:
Bags, Bag Cups, Wishbone with Ball/Pin, Link bars, KYB Shocks, Bolt in C-Notch, Sleeve Bag Mounts and Axle Brackets
May require body modification for improved lower stance such as driveline tunnel and inner wheel well clearance. 100% Bolt on.
Every good air suspension kit should have a high quality air tank to store the air produced by the air pumps. Most air tanks on the market are going to require you to run valves externally, meaning you will have more to deal with during install and more plumbing that will be visible. Our patented ENDO-VT™ valve integrated air tank provides a cleaner install by having the valves integrated into the air tank. This allows for quicker installs and an overall nicer presentation in your trunk, truck bed, or anywhere else you choose to mount your tank. The ENDO-VT also represents AccuAir’s next generation of solenoid valve technology that includes VFC™ (variable flow control) in addition to D.O.T. approved fully filtered and rebuildable FFPTC (fully-filtered push-to-connect) fittings.
AccuAir’s ENDO-Tank product line is the result of years of engineering accomplishments and represents the largest leap forward in air tank technology for 100 years. The system allows tanks to be built modularly with all precision machined aluminum components and with a bolted construction. As a result, these tanks are weld-free and leak-free. Ports are machined directly into the solid aluminum body and are flush with the outside of the tank. Modular construction allows the end-caps to be removed allowing for never before imagined feature combinations to go inside the tank. These tanks are offered in raw aluminum.
Accuair e-Level+ is the highly anticipated next generation air suspension controller from Accuair built on the longest running foundation of technology in the industry. This new generation control system is Bluetooth 5.0 enabled and provides a simpler user experience, with even better performance and reliability, while answering the requests of customer from every corner of the globe. Whether you choose to start simple with the upgradable e+ Connect wireless switchbox or opt to start with the best by adding height sensors and the next level Touchpad+, you will be guaranteed to find the features and value that meet your needs. As always, you can count on the most accurate air suspension controller in the world from Accuair and you'll drive comfortably and consistently knowing that the core of every e-Level+ system has been proven on more than 40,000 vehicles over 10 years.
Accuair e-Level+ Connect is base valve control & Bluetooth. Connect via the Accuair e-Level+ App on your smartphone or tablet. Accuair e-Level+ Connect does not include height sensors (no auto leveling features) or a dedicated controller/touchpad
Accuair e-Level+ Connect with Pressure Sensors will open up the Auto Leveling features built in to the ECU. Using the Pressure sensors to read pressure at each corner of the suspension will send data back to the ECU to control the vehicle height with moderate accuracy.
Accuair e-Level+ Connect with Height Sensors will open up the Auto Leveling features built in to the ECU. Mounting the height sensors at each corner of the suspension will send physical height data back to the ECU to control the vehicle height with the utmost accuracy.
Accuair e-Level+ Connect with Touchpad gives you a dedicated controller for your air suspension system. Accuair e-Level+ Touchpad has a fresh redesign with a smaller profile & magnetic abilities, compatible with all Schosche style cell phone mounts. Also upgraded to include a flying lead cable to help eliminate accidental cord damage.
Accuair e-Level+ Connect with Height Sensor & Touchpad is the ultimate setup. All the features wrapped up into one convenient package!!!
e-Level+ ECU:
Embedded bluetooth 5.0 (the power of our module is barely allowed by FCC so the range will be at least double any other systems on the market)
Customizable back lighting (RGB)
Anodized aluminum ECU enclosure
More robust hardware with full shutdown mode after 24 hours to prevent ANY battery draw.
TouchPad+:
Stainless Steel housing with new shape to match ECU. (Housing is magnetic to be compatible with Scosche style cell phone mounts)
New housing has thinned out to 0.360" thick compared to the old version at 0.500" thick.
Flying lead for USB cable (no USB Mini connectors to damage)
e-Level+ App:
Multiple height display options
Tank pressure display
Vertical and Horizontal formats
Diagnostic screens for easy trouble shooting
Supports over the air updates (OTA) for the e-Level+ firmware itself
Slam Specialties is the leading manufacturer of high-performance air springs. The company started supplying the aftermarket with US-made parts almost two decades now, and it continues to do so, offering only the best products.
Includes:
Front Bag Mounts
The installation is 100% bolt on aside from a little cutting and grinding on the existing spring pocket for air bag clearance. Anyone with basic mechanical skills can install this kit on their own. Don't be scared; you got this!
Switch Suspension is always available for installation questions. Just in case!
Front kit includes:
Upper and Lower control arms
Bolt on upper shock mount
Control arm bolt-on bracket to replace control arm strut mount
Upper bag cup mount
Constructed of Heavy wall DOM tubing, TIG welded joints, cnc machined ball joint cups, and laser cut brackets, cnc formed.
Designed to get your classic car on the asphalt using large wheels
Rear kit includes:
Bags, Bag Cups, Wishbone with Ball/Pin, Link bars, KYB Shocks, Bolt in C-Notch, Sleeve Bag Mounts and Axle Brackets
May require body modification for improved lower stance such as driveline tunnel and inner wheel well clearance. 100% Bolt on.
Every good air suspension kit should have a high quality air tank to store the air produced by the air pumps. Most air tanks on the market are going to require you to run valves externally, meaning you will have more to deal with during install and more plumbing that will be visible. Our patented ENDO-VT™ valve integrated air tank provides a cleaner install by having the valves integrated into the air tank. This allows for quicker installs and an overall nicer presentation in your trunk, truck bed, or anywhere else you choose to mount your tank. The ENDO-VT also represents AccuAir’s next generation of solenoid valve technology that includes VFC™ (variable flow control) in addition to D.O.T. approved fully filtered and rebuildable FFPTC (fully-filtered push-to-connect) fittings.
AccuAir’s ENDO-Tank product line is the result of years of engineering accomplishments and represents the largest leap forward in air tank technology for 100 years. The system allows tanks to be built modularly with all precision machined aluminum components and with a bolted construction. As a result, these tanks are weld-free and leak-free. Ports are machined directly into the solid aluminum body and are flush with the outside of the tank. Modular construction allows the end-caps to be removed allowing for never before imagined feature combinations to go inside the tank. These tanks are offered in raw aluminum.
Accuair e-Level+ is the highly anticipated next generation air suspension controller from Accuair built on the longest running foundation of technology in the industry. This new generation control system is Bluetooth 5.0 enabled and provides a simpler user experience, with even better performance and reliability, while answering the requests of customer from every corner of the globe. Whether you choose to start simple with the upgradable e+ Connect wireless switchbox or opt to start with the best by adding height sensors and the next level Touchpad+, you will be guaranteed to find the features and value that meet your needs. As always, you can count on the most accurate air suspension controller in the world from Accuair and you'll drive comfortably and consistently knowing that the core of every e-Level+ system has been proven on more than 40,000 vehicles over 10 years.
Accuair e-Level+ Connect is base valve control & Bluetooth. Connect via the Accuair e-Level+ App on your smartphone or tablet. Accuair e-Level+ Connect does not include height sensors (no auto leveling features) or a dedicated controller/touchpad
Accuair e-Level+ Connect with Pressure Sensors will open up the Auto Leveling features built in to the ECU. Using the Pressure sensors to read pressure at each corner of the suspension will send data back to the ECU to control the vehicle height with moderate accuracy.
Accuair e-Level+ Connect with Height Sensors will open up the Auto Leveling features built in to the ECU. Mounting the height sensors at each corner of the suspension will send physical height data back to the ECU to control the vehicle height with the utmost accuracy.
Accuair e-Level+ Connect with Touchpad gives you a dedicated controller for your air suspension system. Accuair e-Level+ Touchpad has a fresh redesign with a smaller profile & magnetic abilities, compatible with all Schosche style cell phone mounts. Also upgraded to include a flying lead cable to help eliminate accidental cord damage.
Accuair e-Level+ Connect with Height Sensor & Touchpad is the ultimate setup. All the features wrapped up into one convenient package!!!
e-Level+ ECU:
Embedded bluetooth 5.0 (the power of our module is barely allowed by FCC so the range will be at least double any other systems on the market)
Customizable back lighting (RGB)
Anodized aluminum ECU enclosure
More robust hardware with full shutdown mode after 24 hours to prevent ANY battery draw.
TouchPad+:
Stainless Steel housing with new shape to match ECU. (Housing is magnetic to be compatible with Scosche style cell phone mounts)
New housing has thinned out to 0.360" thick compared to the old version at 0.500" thick.
Flying lead for USB cable (no USB Mini connectors to damage)
e-Level+ App:
Multiple height display options
Tank pressure display
Vertical and Horizontal formats
Diagnostic screens for easy trouble shooting
Supports over the air updates (OTA) for the e-Level+ firmware itself
Slam Specialties is the leading manufacturer of high-performance air springs. The company started supplying the aftermarket with US-made parts almost two decades now, and it continues to do so, offering only the best products.
Includes:
Front Bag Mounts
Rear Bag Mounts
2 x Slam Specialties SS-7
2 x Slam Specialties TS-6
Accuair ENDO-VT (Valve-Tank) 5 gallon AA-3642 (Dual Compressor)
Accuair e-Level+ Complete Kit (AA-3639 / AA-3641 / AA-3640)
Dual Compressor Wire Kit
Viair 444C Dual Pack Compressors
50ft of 3/8" Air Line
2 x Brass 1/4" Female NPT to 1/4" Male NPT Street Elbow (FIT28262)
Note: It can work on a 1970 Model Cars but will require included upper shock bracket to be modified and welded in.
Accuair ENDO-VT (Valve-Tank) 5 gallon AA-3642 (Dual Compressor)
Accuair e-Level+ Complete Kit (AA-3639 / AA-3641 / AA-3640)
Dual Compressor Wire Kit
Viair 444C Dual Pack Compressors
50ft of 3/8" Air Line
2 x Brass 1/4" Female NPT to 1/4" Male NPT Street Elbow (FIT28262)
Note: It can work on a 1970 Model Cars but will require included upper shock bracket to be modified and welded in.
Brand (Manufacturer) Info
Since 2012, Switch Suspension has been giving the best of everything for anything that has wheels or has to do with wheels. Aside from superior quality brake, suspension, and steering upgrades, the company also has an installation facility and retail showroom in Mesa, Arizona.
Whatever your car or truck needs - upgrades, custom components, chassis, big brake kits, lowering kits, or suspension kits, Switch Suspension has it. Best of all, you can do your shopping online, right in the comforts of your home!
