Product Overview
The Lincoln Continental is one of America's most iconic automobiles, it was the height of luxury and technology when launched, and the body style is timeless and classic.
Fits: Lincoln Continental 4 door 1964, 1965, 1966, 1967, 1968, 1969
Fits: Lincoln Continental 4 door 1964, 1965, 1966, 1967, 1968, 1969
Features:
Unfortunately, it's also one of the most difficult cars to drop on the ground! Unibody construction combined with the leaf spring rear suspension, and a gas tank located right behind the axle all conspire to scare away many people from putting air suspension on their ride.
BUT NO MORE! We've developed a triangulated 4 link system that utilizes factory structural points, places the airbags in a leveraged mounting for a great ride, and retains factory shock and gas tank locations.
This kit includes lower link bars fabricated using 2" DOM tubing, with beefy urethane bushings at each end. These bars mount to a bracket that bolts directly in place of the factory leaf spring mount on the subframe, and to a new bracket that welds on the axle in place of the stock spring perch. The lower bars also have a mount for the included Air Lift airbag. The airbags mount up top to a new crossmember that ties into the subframe rails- this crossmember runs the width of the car and also contains the upper link bar mounts. The upper links utilize 3/4" Chromoly heim joints with misalignment spacers to eliminate binding.
The entire link is fully adjustable, and will allow your car to drop from the ground to nearly stock height. There is some welding required- the upper and lower link mounts on the axle housing will need to be welded into place
kit removes the need to replace your lower control arms or weld in brackets. This kit includes the front airbag brackets and shock relocation kit, and it comes powder-coated and ready to install.
Note: This Kit requires the removal of the stock sway bar.
Completely Bolt-in
Powder-coated Semi Gloss Black
Includes Shocks
Front Airbag Brackets: Newly re-designed, and now completely bolt-in, these brackets come powder-coated semi-gloss black, and include all hardware required for installation.
Continental Shock Relocation Kit: Our new Continental shock relocation kit, lets you relocate your shocks without having to buy new control arms. This kit is completely bolt-in and comes powder-coated semi-gloss black, and includes shocks.
Switch Suspension the valve manifold!!!
We are proud to offer our latest 4 corner billet valve manifold. This manifold offers control of each wheel independently. Paired with a plug & play switch box for easy installation. The 7 rocker switch box offers front up/down, rear up/down & all up/down control into they're own respective switch as well as individual up/down control of each wheel. All the options !!! Fully Blacked out finish for good looks or a stealth install.
Wiring is extra simple with plug & play control. Supply 12v power and ground and your up and running.
Includes:
Unfortunately, it's also one of the most difficult cars to drop on the ground! Unibody construction combined with the leaf spring rear suspension, and a gas tank located right behind the axle all conspire to scare away many people from putting air suspension on their ride.
BUT NO MORE! We've developed a triangulated 4 link system that utilizes factory structural points, places the airbags in a leveraged mounting for a great ride, and retains factory shock and gas tank locations.
This kit includes lower link bars fabricated using 2" DOM tubing, with beefy urethane bushings at each end. These bars mount to a bracket that bolts directly in place of the factory leaf spring mount on the subframe, and to a new bracket that welds on the axle in place of the stock spring perch. The lower bars also have a mount for the included Air Lift airbag. The airbags mount up top to a new crossmember that ties into the subframe rails- this crossmember runs the width of the car and also contains the upper link bar mounts. The upper links utilize 3/4" Chromoly heim joints with misalignment spacers to eliminate binding.
The entire link is fully adjustable, and will allow your car to drop from the ground to nearly stock height. There is some welding required- the upper and lower link mounts on the axle housing will need to be welded into place
kit removes the need to replace your lower control arms or weld in brackets. This kit includes the front airbag brackets and shock relocation kit, and it comes powder-coated and ready to install.
Note: This Kit requires the removal of the stock sway bar.
Completely Bolt-in
Powder-coated Semi Gloss Black
Includes Shocks
Front Airbag Brackets: Newly re-designed, and now completely bolt-in, these brackets come powder-coated semi-gloss black, and include all hardware required for installation.
Continental Shock Relocation Kit: Our new Continental shock relocation kit, lets you relocate your shocks without having to buy new control arms. This kit is completely bolt-in and comes powder-coated semi-gloss black, and includes shocks.
Switch Suspension the valve manifold!!!
We are proud to offer our latest 4 corner billet valve manifold. This manifold offers control of each wheel independently. Paired with a plug & play switch box for easy installation. The 7 rocker switch box offers front up/down, rear up/down & all up/down control into they're own respective switch as well as individual up/down control of each wheel. All the options !!! Fully Blacked out finish for good looks or a stealth install.
Wiring is extra simple with plug & play control. Supply 12v power and ground and your up and running.

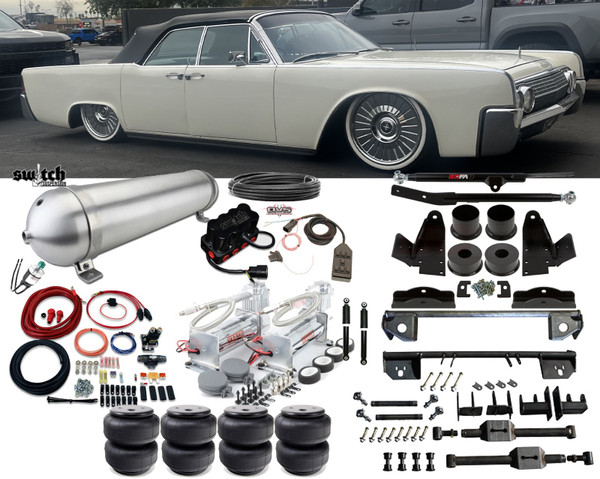

Includes:
Front Upper and Lower Control Arms with Bag Mounts
Front Shocks Relocator Kit
Rear Link Kit with Bag Mounts
4 x Air Lift 2600 Dominator Air Bags
Seamless Aluminum 6" Tank (6x28)
Viair 444C Dual Pack Compressors
Pressure Switch 200 PSI (90221)
Dual Compressor Wire Kit
Tank Drain Valve (92835)
2 x 3/8 x 1/4 Bushings (FIT28116)
1 x 3/8 x 1/8 Bushing (FIT28122)
1 x 3/8 Plug (FIT28095)
1 x 3/8 x 3/8 Tube 90 Fitting (FIT109308022)
5 x 3/8 x 3/8 Tube Straight Fitting (FIT103308022)
50ft 3/8 Air line
Front Shocks Relocator Kit
Rear Link Kit with Bag Mounts
4 x Air Lift 2600 Dominator Air Bags
Seamless Aluminum 6" Tank (6x28)
Viair 444C Dual Pack Compressors
Pressure Switch 200 PSI (90221)
Dual Compressor Wire Kit
Tank Drain Valve (92835)
2 x 3/8 x 1/4 Bushings (FIT28116)
1 x 3/8 x 1/8 Bushing (FIT28122)
1 x 3/8 Plug (FIT28095)
1 x 3/8 x 3/8 Tube 90 Fitting (FIT109308022)
5 x 3/8 x 3/8 Tube Straight Fitting (FIT103308022)
50ft 3/8 Air line
Brand (Manufacturer) Info
Since 2012, Switch Suspension has been giving the best of everything for anything that has wheels or has to do with wheels. Aside from superior quality brake, suspension, and steering upgrades, the company also has an installation facility and retail showroom in Mesa, Arizona.
Whatever your car or truck needs - upgrades, custom components, chassis, big brake kits, lowering kits, or suspension kits, Switch Suspension has it. Best of all, you can do your shopping online, right in the comforts of your home!
